Wide Bandwidth 50W 100W 1000-2000mhz Bidirectional PA RF Power Module Anti FPV UAV
This 1000-2000 PA RF power amplifier module can jam frequency band FPV 1000-2000MHz in one module. This module does not include a built-in signal generator. Customers must purchase one for assembly. This module is manufactured and developed by Texin, and both frequency band and power are customizable. We welcome inquiries and purchases from customers worldwide. Texin guarantees high-quality products and excellent service.
Key Features
- 1000-2000mhz ultra band in one power amplifier
- 28/-32V voltage for use
- UAV FPV drone of 95% can be jammed
- Stable input 0-10dbm (customized)
- The output can be choose S connector or N connector
Technical Specifications
| No. |
Item |
Data |
Unit |
| 1 |
Frequency |
1000-2000 |
MHz |
| 2 |
Test voltage |
28-32 |
V |
| 3 |
Current |
9.5 |
A |
| 4 |
Output |
100 |
W |
| 5 |
Gain |
50 |
dB |
| 6 |
Output stability |
1 |
dB |
| 7 |
Connector |
SMA / Female |
| 8 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
| 9 |
Standard input |
0-10 |
dB |
| 10 |
Power supply wire |
Red+Black+Enable wire |
| 11 |
Enable Control |
High ON Low Off |
| 12 |

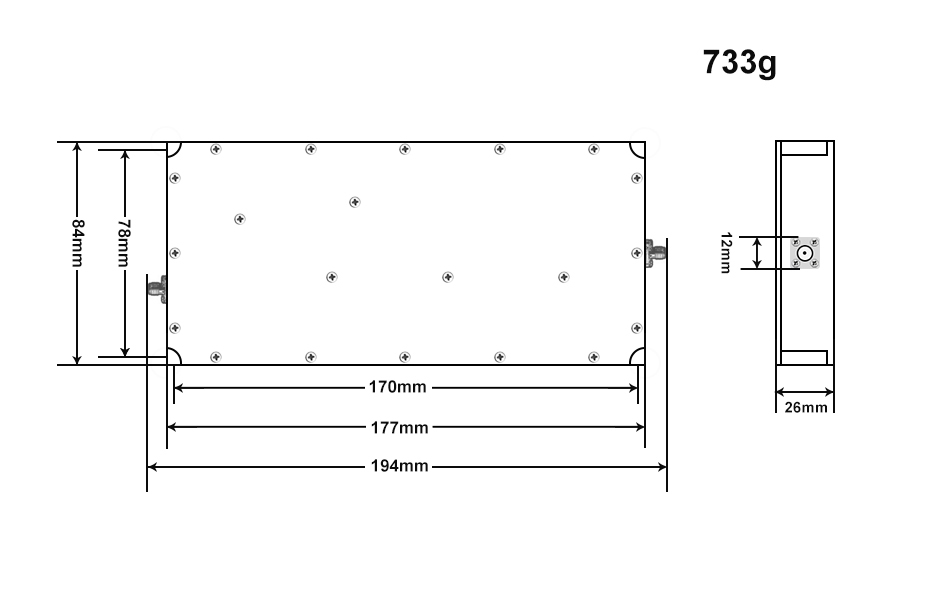

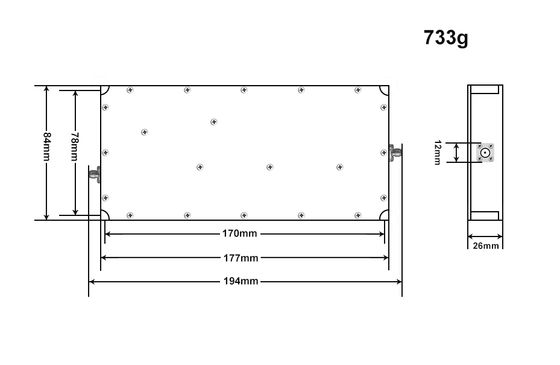

Out shell Size |
177*84*26 |
mm |
| 13 |
Mount hole |
170*78 |
mm |
| 14 |
Weight |
733 |
g |
| 15 |
Work Temperature |
-40~+65 |
℃ |
| 16 |
Out shell material |
Aluminum |
| 17 |
Vibration need |
Car load OK |
Working and Storage Environment Requirements
- Need working -40℃ to +65℃ environment
- Operate voltage within 24-28V (option)
- Use it before need connect antenna first
- Long range distance working 1.5-2km but no have any obstruction
- When working at high power, a heat sink needs to be installed

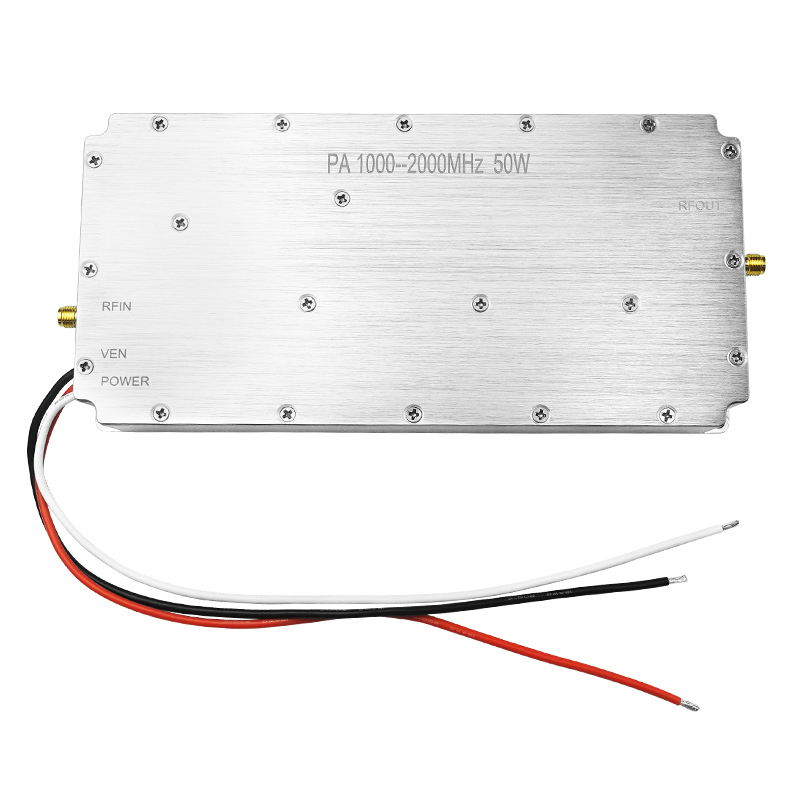

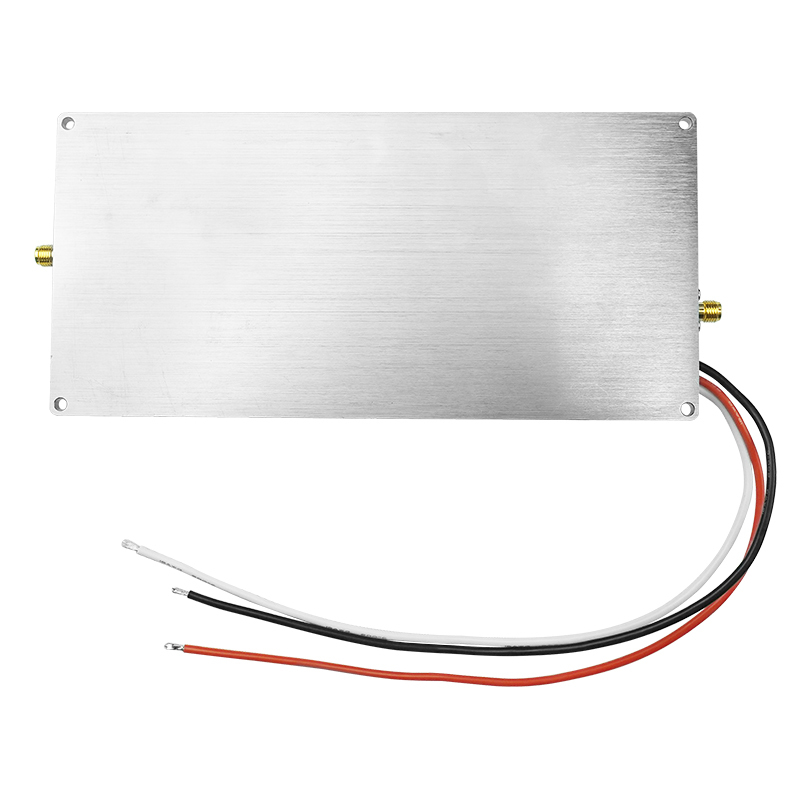

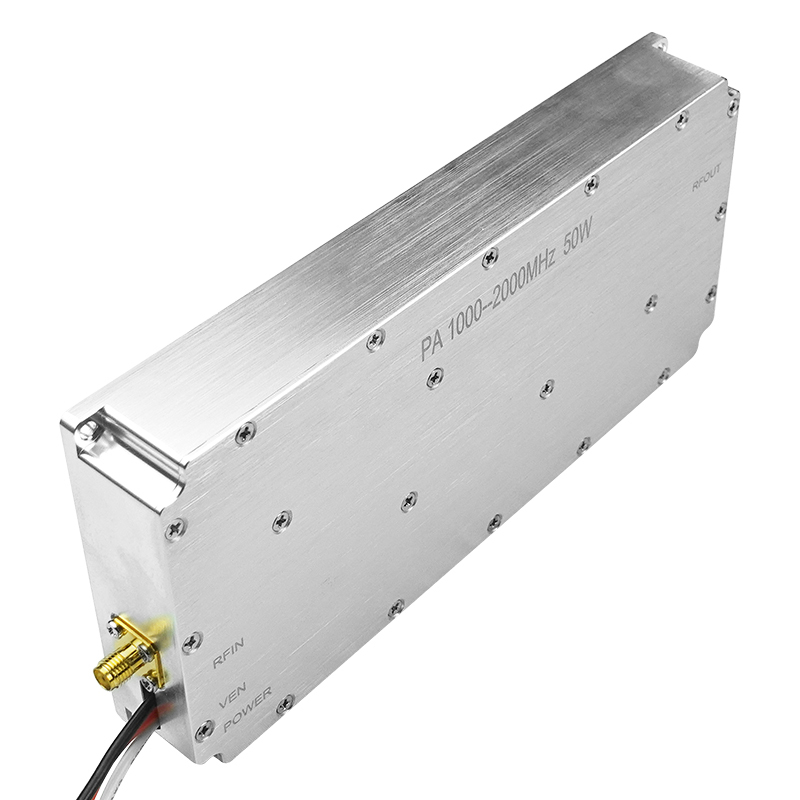

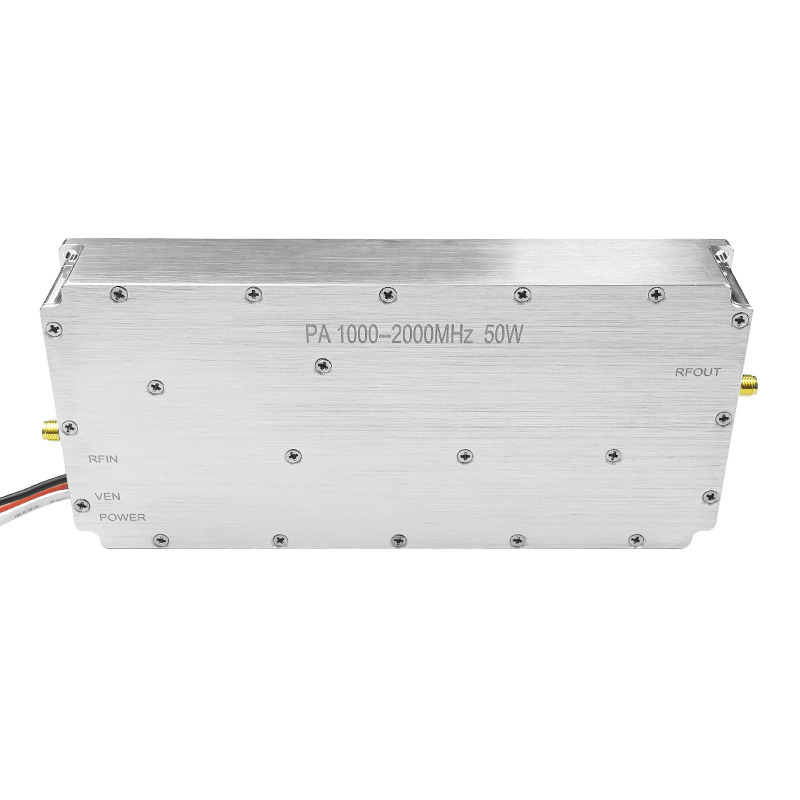

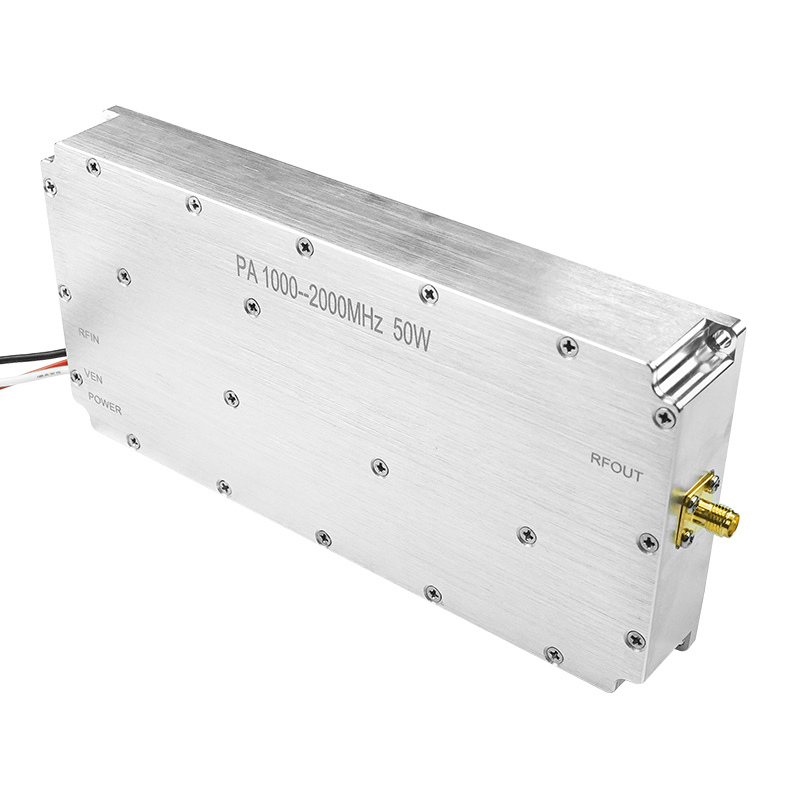

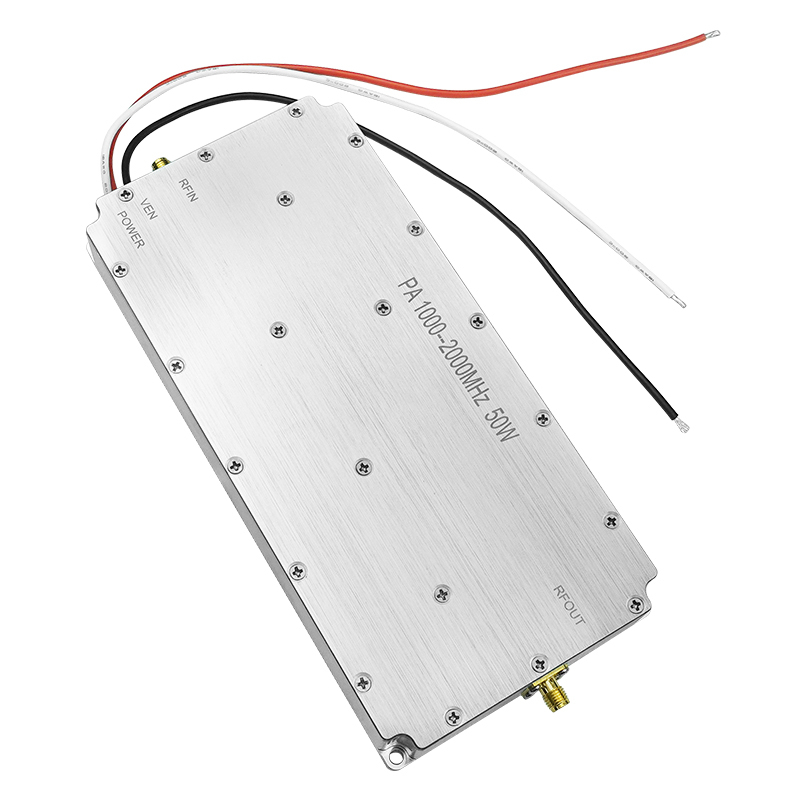

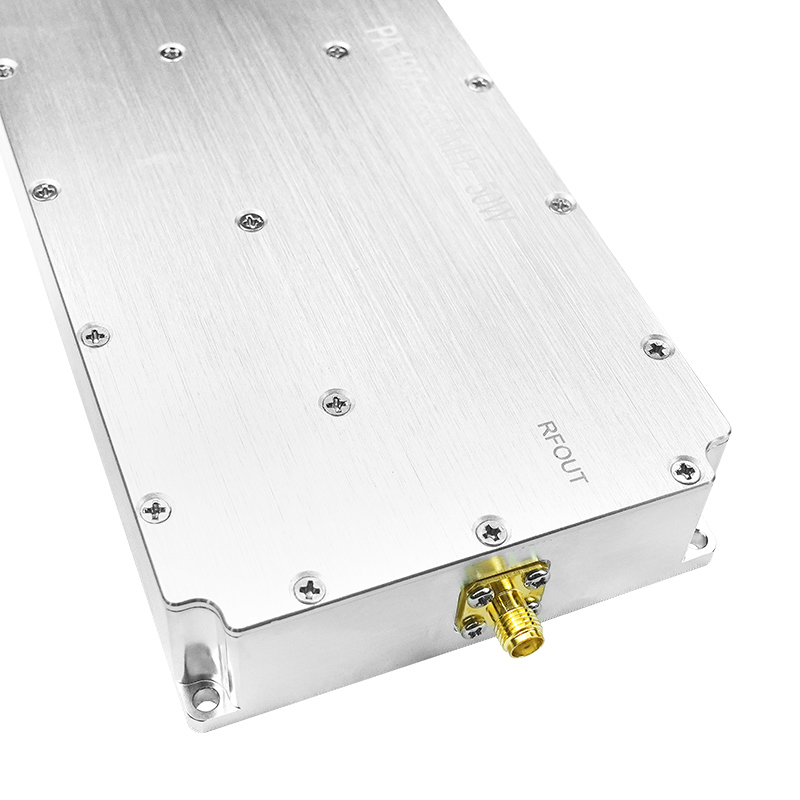

Product Images
Texin Factory Introduction
With the expansion of business, Texin has now opened more than 10 production lines, which can support large-volume orders. We have advanced debugging equipment and a professional technical team. Our drone countermeasure equipment is sold all over the world. Excellent products and high-quality services have won unlimited praise from customers. If you have any ideas, please feel free to consult. Shenzhen Texin Electronics Co., Ltd. looks forward to cooperating with you!
Usage Scenarios
Exhibition
Applications
Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
