Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation

Informação Básica

Lugar de origem:	China
Marca:	TeXin
Certificação:	CE ISO
Número do modelo:	TX-HZ130W

Quantidade de ordem mínima:	1
Preço:	Negociável
Detalhes da embalagem:	Caso ou caixa durável
Tempo de entrega:	5-8 dias
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union
Habilidade da fonte:	100000EM MÊS

Melhor preço contacto

Informação detalhada

Poder:	130W	Freqüência:	Personalizado
Tensão:	28 V	Atual:	11A
peso:	643g	Tamanho:	1776424mm
Aplicativo:	sistema anti -drone	Material:	Alumínio
Conector:	SMA
Destacar:	130W WiFi 5GHz amplifier , anti FPV UAV module , VCO modulation amplifier

Descrição de produto

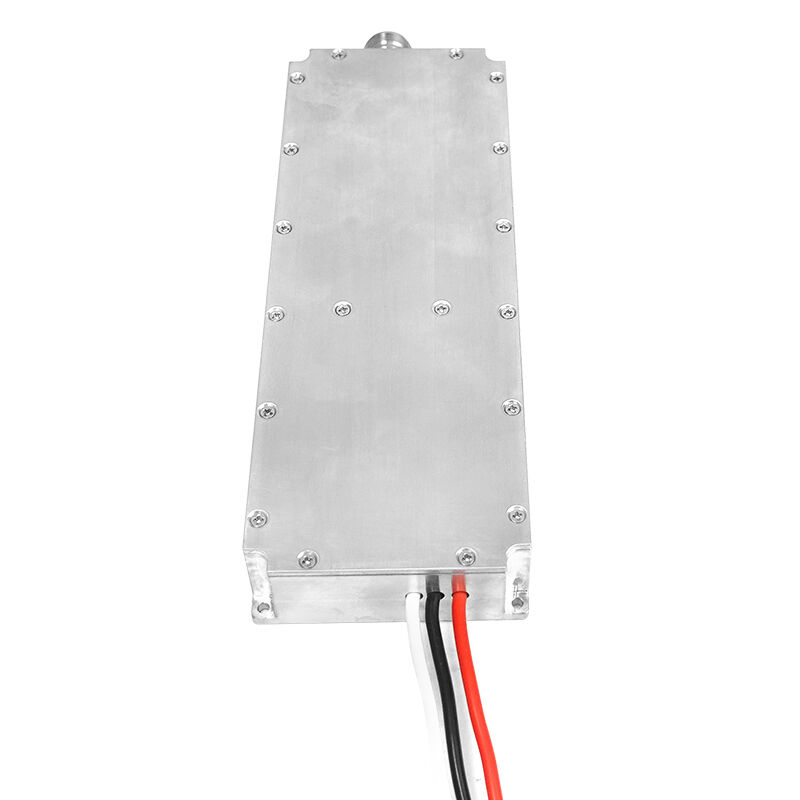

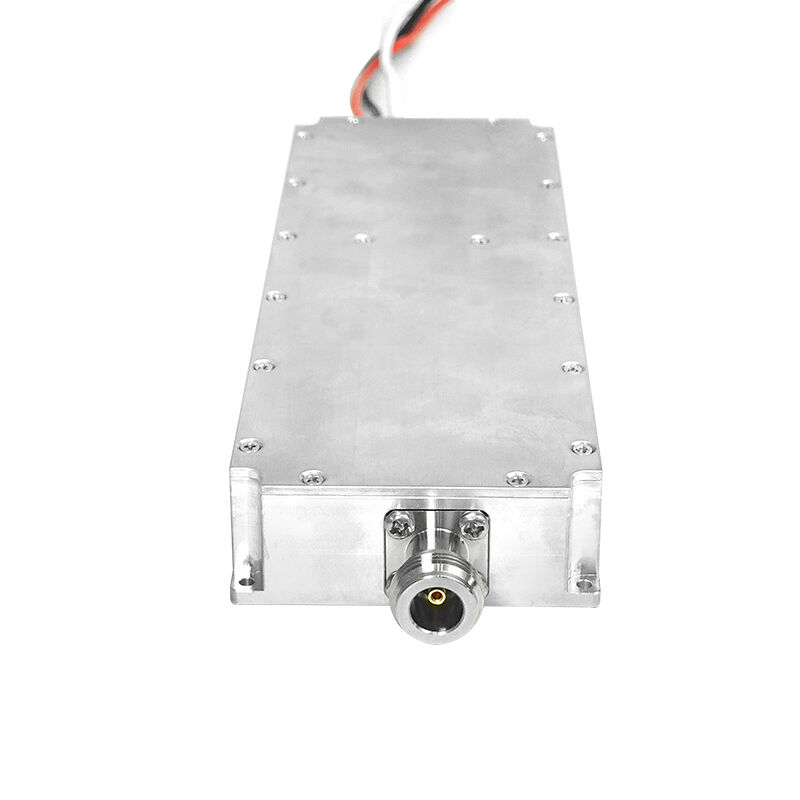

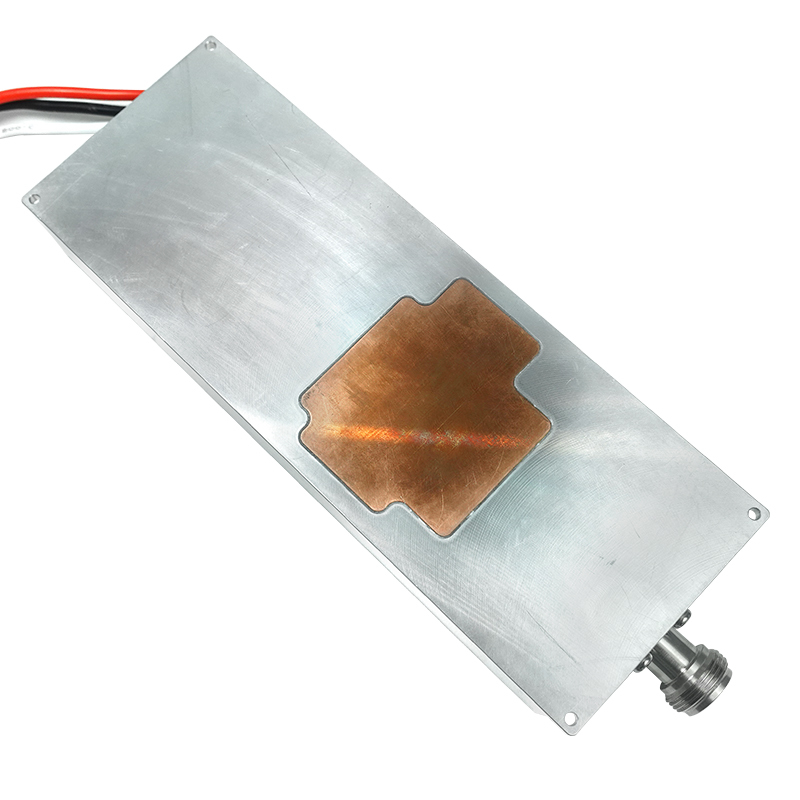

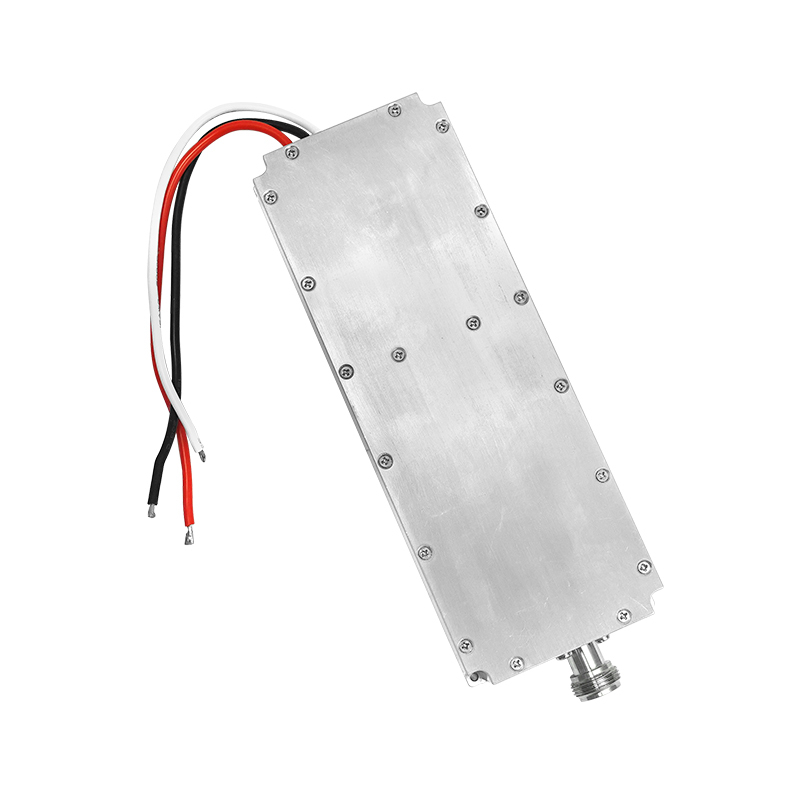

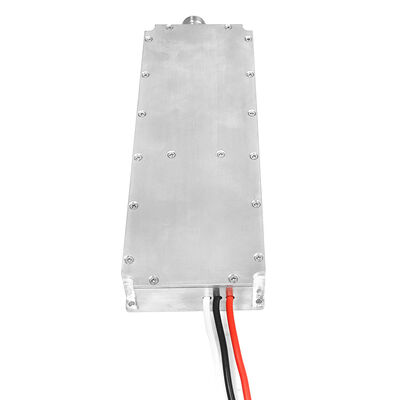

Custom 130W WIFI 5GHz Anti-FPV UAV Module

This custom 130W anti-FPV drone module specifically targets the 5GHz WiFi band (5150MHz-5350MHz and 5725MHz-5850MHz) used by FPV drones for high-definition image transmission and remote control. Utilizing advanced VCO modulation technology, this module effectively counters small, fast-flying FPV drones that are difficult to detect and control.

Technical Specifications

Parameter	Value	Unit
Frequency	5150-5250	MHz
Test Voltage	28	V
Current	11	A
Output Power	130	W
Gain	52	dB
Output Stability	1	dB
Connector	N/Female
Output Connector VSWR	≤1.30 (No power and VNA test)
Power Supply	Red+Black+Enable wire
Enable Control	High ON Low Off

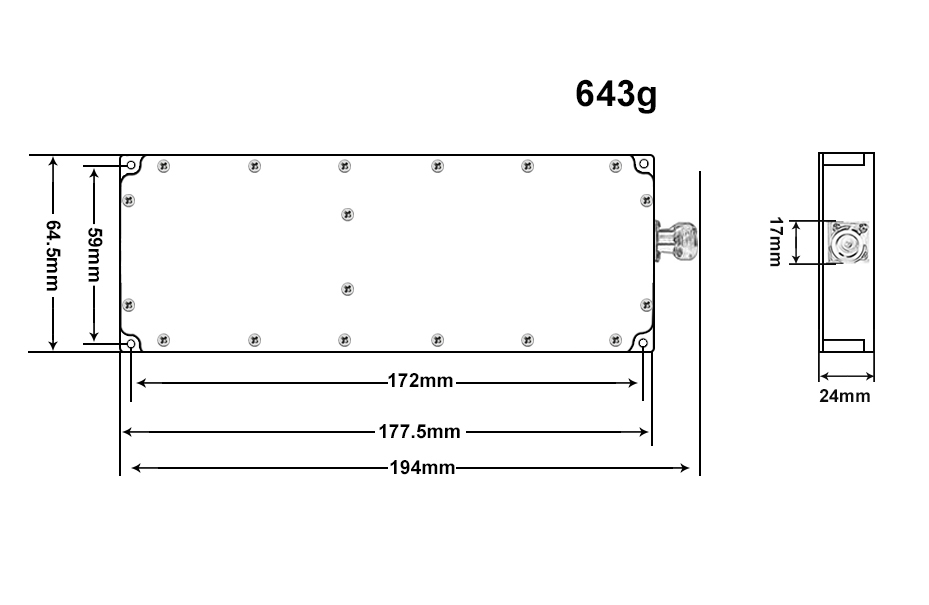

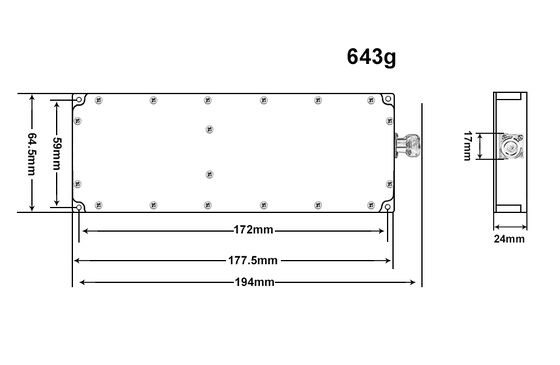

Dimensions	1776424	mm
Mount Hole	177*64	mm
Weight	643	g
Operating Temperature	-40 to +65	℃
Housing Material	Aluminum
Vibration Resistance	Car load OK

Key Features

130W High Power Output: Equipped with high-efficiency GaN power amplifier delivering maximum output power of 130W (≥51dBm) for long-distance interference
Advanced VCO Modulation Technology: Precisely covers core frequency bands of 5150MHz (5150-5350MHz) and 5850MHz (5725-5850MHz)
High Power & Long-Distance Interference: Maximum output power of single frequency band reaches 70W with omnidirectional interference radius of 800-1500m in open environments
Customizable Design: Combined output power adjustable according to actual operational needs
Targeted 5GHz Coverage: Specifically designed to disrupt FPV drone high-definition image transmission and remote control systems
