Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module

Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module
Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module
Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module
Informação Básica
Lugar de origem: China
Marca: TeXin
Certificação: CE ISO
Número do modelo: TX-PD50W
Quantidade de ordem mínima: 1
Preço: Negociável
Detalhes da embalagem: Caso ou caixa durável
Tempo de entrega: 5-8 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union
Habilidade da fonte: 100000EM MÊS
Melhor preço contacto
Informação detalhada
Poder: 50W Freqüência: 6GHz 7GHz
Tensão: 28 V Atual: 5.5A
Peso: 300g Tamanho: 132*53*24mm
Chip: Gan!
Destacar:

N-type radar signal shield

,

6 GHz RF power amplifier

,

FPV jammer module with warranty

Descrição de produto

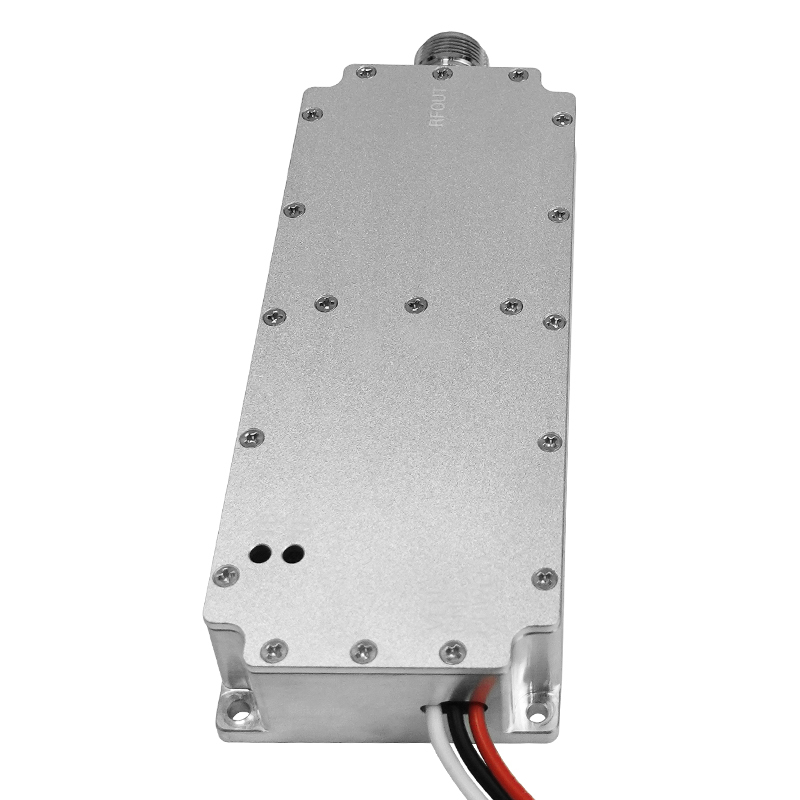

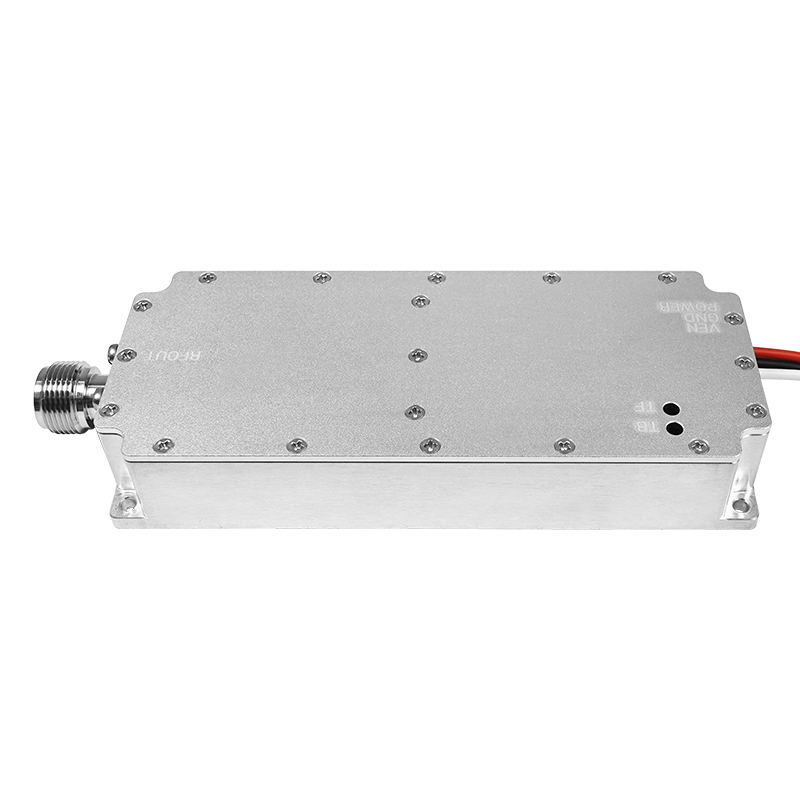

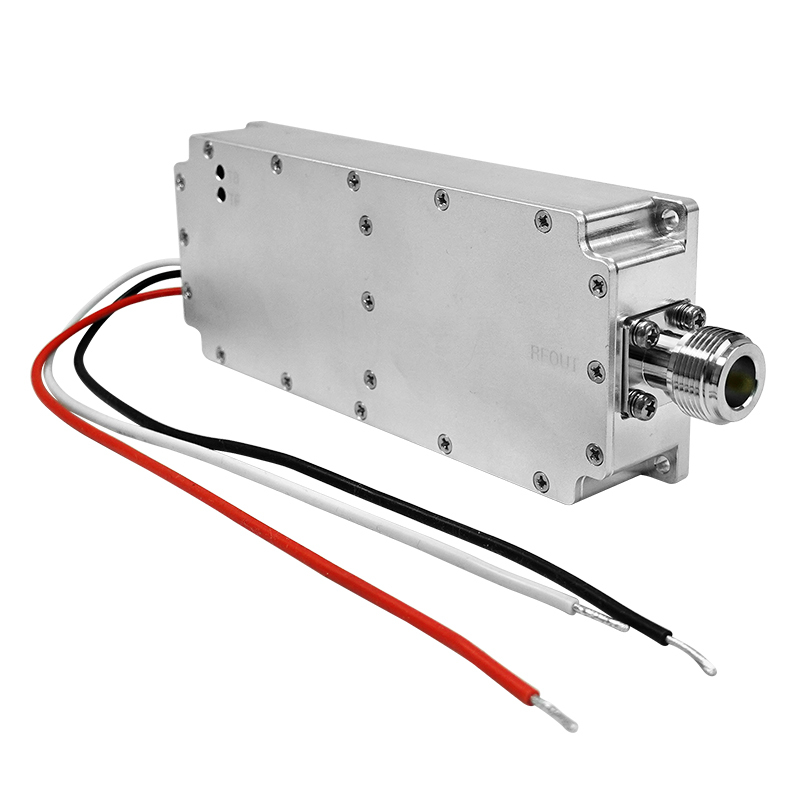

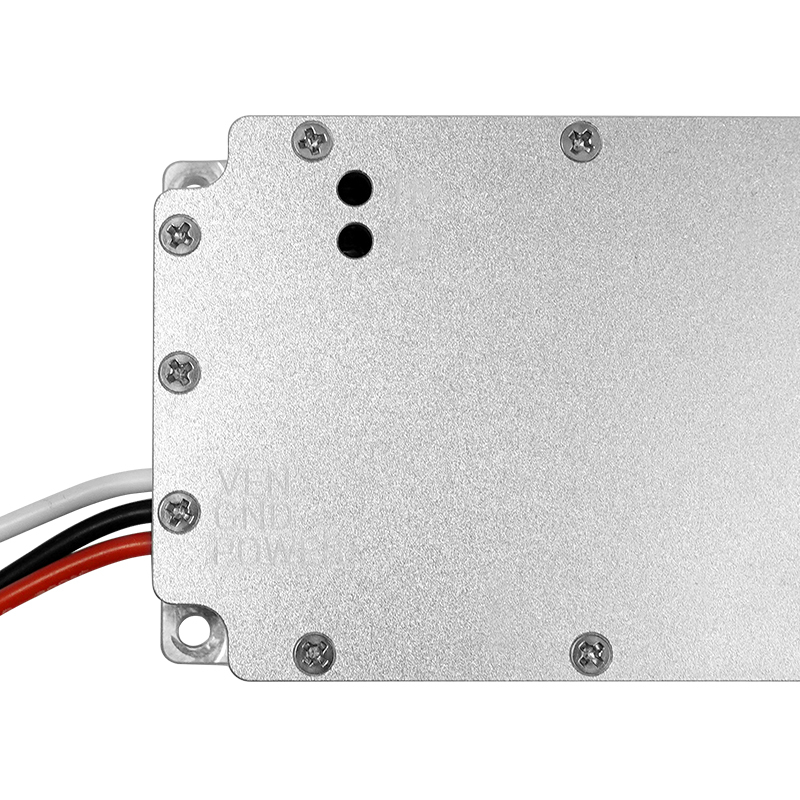

Customized N-type Radar Signal Shield 6 GHz 7 GHz RF Power Amplifier Module
Customized N-type radar signal shield 6 GHz 7 GHz RF power amplifier module
Product Introduction
This 6GHz/7GHz radar and communication jamming RF amplifier module is a professional jamming and signal suppression system with full-band coverage and high reliability. It is fully customizable and offers a powerful and stable RF power advantage in drone countermeasures, radar testing, security shielding, and high-frequency electronic warfare.
Designed specifically for the 6000-7000MHz frequency band, this RF power amplifier module uses industrial-grade components and features high power, long-range, and stable performance. Inquiries and purchases are welcome.
Technical Specifications
No. Item Data Unit
1 Frequency 5925-6425 MHz
2 Test voltage 28 V
3 Current 5.5 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector SMA/Female
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off
11 Out shell Size 132*53*17 mm
12 Mount hole 125*46 mm
13 Weight 200 g
14 Work Temperature -40~+65 ℃
15 Out shell material Aluminum
16 Vibration need Car load OK
Key Features
  • Full 6-7GHz Ultra-Band Coverage: Covers the full 6000-7000MHz band for radar, communication, drone FPV, and 6G/Wi-Fi 6E/7E signal suppression.
  • High-Power GaN Design for Stronger Jamming: Built with high-efficiency GaN technology for stable high power output, longer jamming distance, and better penetration.
  • Standard N-Type Connector for Industrial Use: Equipped with professional N-type interface for low loss, high power resistance, anti‑loosening, and stable connection in harsh environments.
  • Stable & Reliable for Long Operation: Integrated over‑voltage, over‑current, over‑heat, and high VSWR protection. Metal shell with excellent heat dissipation for 24/7 continuous work.
  • Wide Application: Ideal for drone countermeasure, security protection, radar test, communication shielding, EMC test, and electronic countermeasure systems.
Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module 0 Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module 1 Customized N-type radar signal shield 6 ghz 7 ghz rf power amplifier module 2
Important Notes
1. Please use the matched voltage.
2. The antenna needs to be connected before powering on.
3. A cooling system is needed for prolonged operation.
4. It works better in areas with unobstructed views.
Frequently Asked Questions
What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples.
How much of the 50W 6GHz 7GHz drone signal jammer module?
Prices vary depending on the frequency band; please feel free to contact us.
What are the payment methods?
T/T, Alibaba, Paypal, USDT, Alipay, Wechat, etc.
How about the delivery time?
Orders are usually shipped within 5-7 days after placement.
