Casa > Produtos> módulo bloqueador de drones> Customized large size lora digital 50W 74mm wide drone jammer module

Customized large size lora digital 50W 74mm wide drone jammer module

Informação Básica

Lugar de origem:	SHENZHEN CHINA
Marca:	TeXin
Certificação:	SGS,ISO9001,ROHS
Número do modelo:	TX-C050VGHN

Quantidade de ordem mínima:	1
Preço:	Negociável
Detalhes da embalagem:	Caso ou caixa durável
Tempo de entrega:	5-8 dias
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union
Habilidade da fonte:	10.000 unidades por mês

Melhor preço contacto

Informação detalhada

Marca:	Texas	Poder:	50W
Freqüência:	400 MHz 500 MHz 800 MHz	Tensão:	24-28V
Ganho:	47DBM	Tipo:	módulo bloqueador de drones
Conector:	Tipo N	Tamanho:	2257423,5MM
Peso:	833g
Destacar:	50W drone jammer module , 74mm wide drone jammer , customized large size lora jammer

Descrição de produto

Customized Large Size LoRa Digital 50W 74mm Wide Drone Jammer Module

This 50W high-power, customized LoRa digital drone jamming module features a 74mm wide-body design and a rated output power of 50W. It is designed to stably suppress drone remote control, image transmission, and navigation signals, and is suitable for professional scenarios such as security, no-fly zone protection, and vehicle-mounted/fixed anti-drone systems.

Key Features

50W High Power Output: With a high power design of 50W, it offers wider signal coverage and more effective interference distance. With a single click, the drone's remote control, image transmission, and positioning can be cut off, enabling it to be driven away or forced to land.
Large Size 74mm Width: The widened structure provides a larger heat dissipation area, supporting long-term continuous operation.
LoRa Digital Solution: With LoRa digital technology, more effective interference capable of disrupting FPV DIY and other drone models for short periods.
Customized Service: Any requirement can be customized by Texin, which has more than 10 years of experience in the RF field.

Technical Specifications

Item	Data	Unit
Frequency	Customized	MHz
Test Voltage	24-28	V
Current	5	A
Output	50	W
Gain	47	dB
Output Stability	1	dB
Connector	N/Female
Output Connector VSWR	≤1.30 (No power and VNA test)
Standard Input	0-10DB
Power Supply Wire	Red+Black+Enable wire
Enable Control	High ON Low Off
Out Shell Size	2257423.5	mm
Mount Hole	225*74	mm
Weight	883	g
Work Temperature	-40~+65	℃
Out Shell Material	Aluminum
Vibration Need	Car load OK

Applications

Security in key areas
No-fly zone protection for airports, prisons, and government facilities
Vehicle-mounted and fixed anti-drone systems
Security integration projects
Airspace security for large-scale events, competitions, and factory areas
OEMs requiring customized jamming modules

After Service

Purchased Texin products come with a 1-year warranty.

Includes technical specifications and user manual.

We provide technology support after purchasing our products.

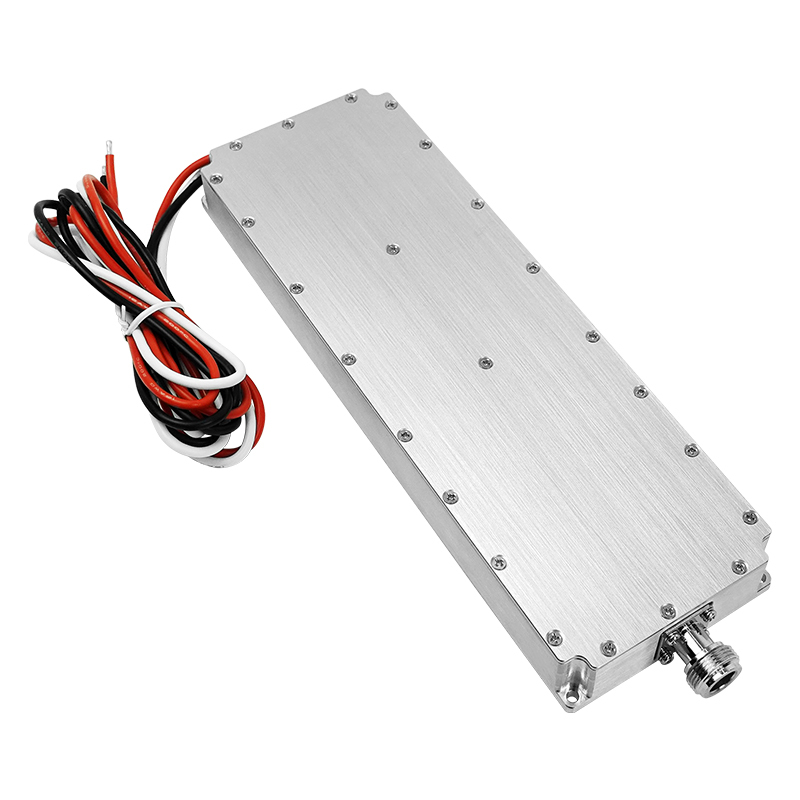

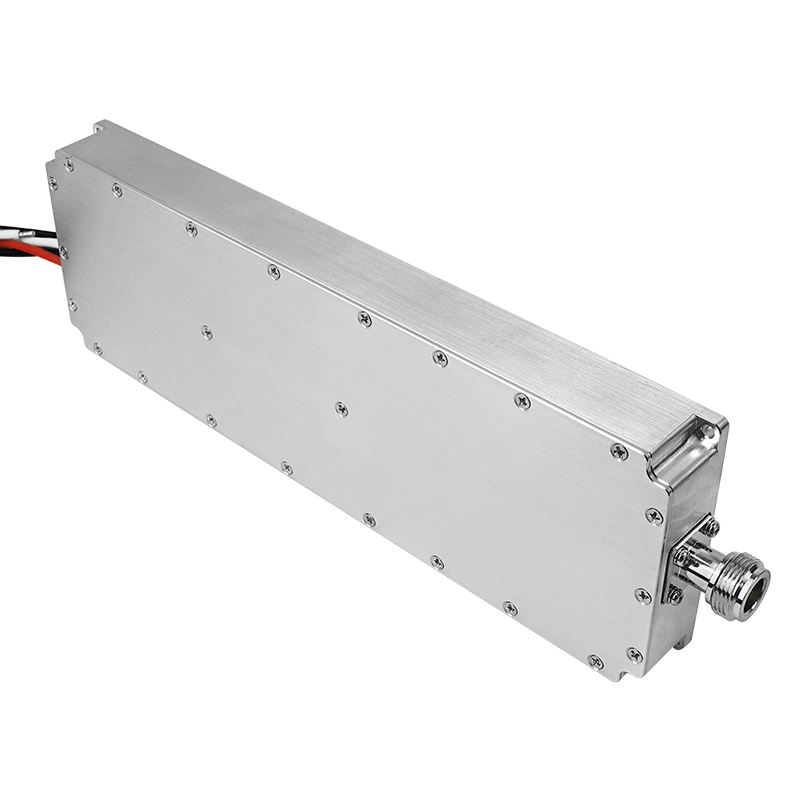

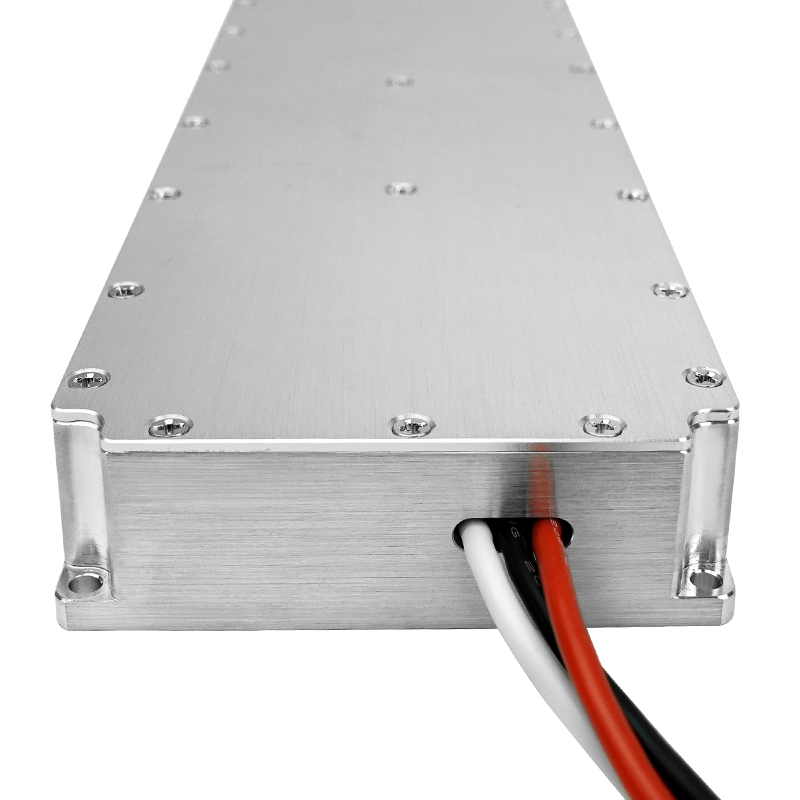

Product Images

Frequently Asked Questions

How much does this drone signal jammer module cost?

The newest price please contact us, we use tiered pricing; the more you buy, the better the value for money.

What is the minimum purchase quantity?

One order is supported; free samples are not available.

What is the delivery time?

Delivery typically takes 5-7 working days after payment. For bulk orders, delivery time requires negotiation.
