Informação detalhada

Freqüência:	100-1000 MHz (personalizado)	Ganho:	5 a 10 dB
ROE:	≤2	Polarização:	Vertical
Impedância de entrada:	50Ω	Potência de entrada:	100W
Temperatura operacional:	40~80º	Tamanho da concha exterior:	302237333mm
Peso:	1,95 kg	Conector:	N Conector
Material de casca fora:	Cobre
Destacar:	wide band directional antenna 100-1000MHz , waterproof outdoor antenna for base station , high gain antenna 100W with warranty

Descrição de produto

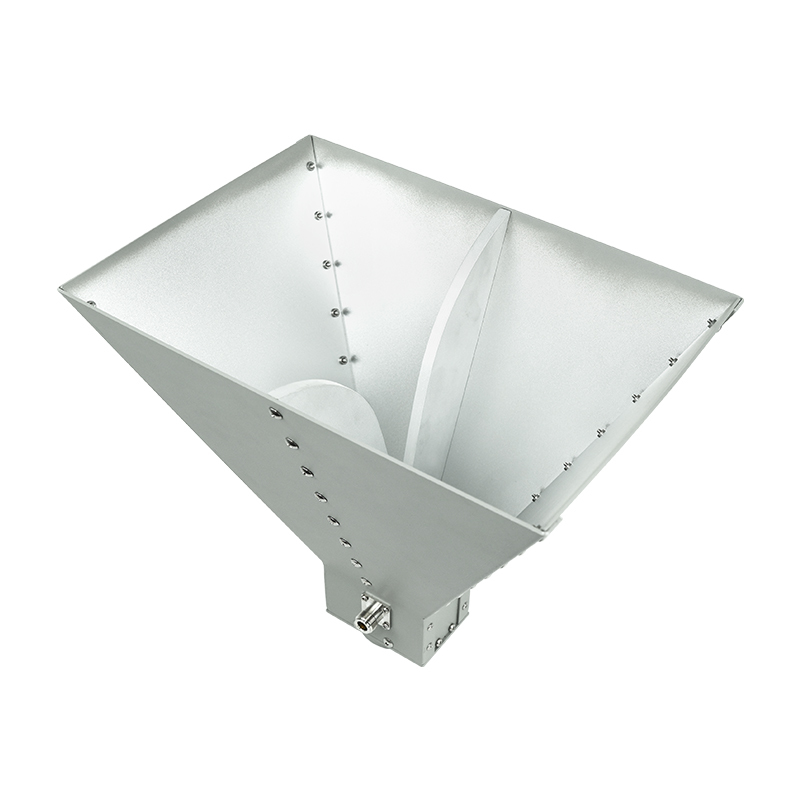

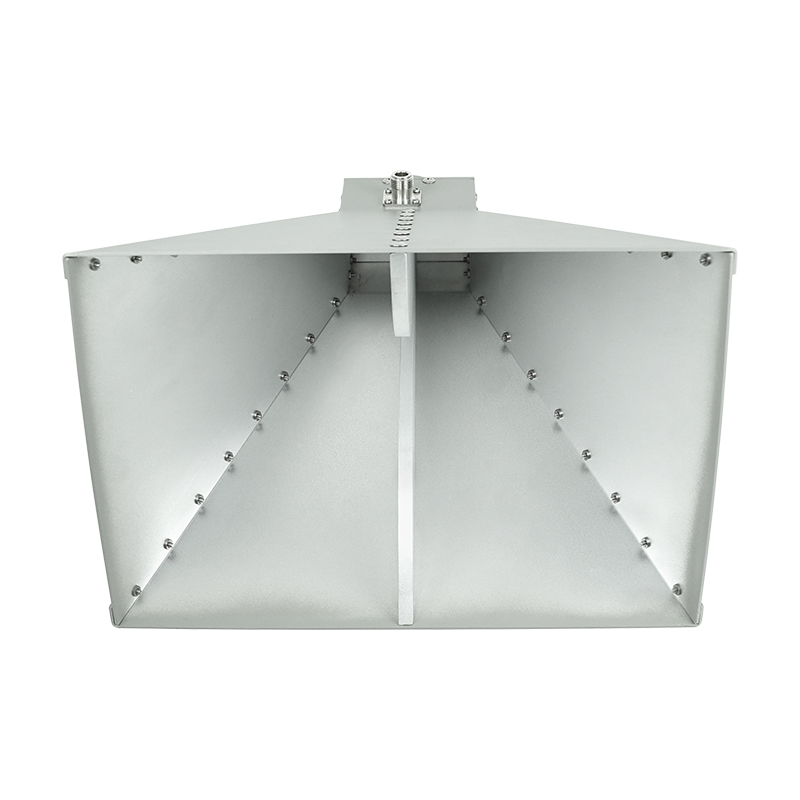

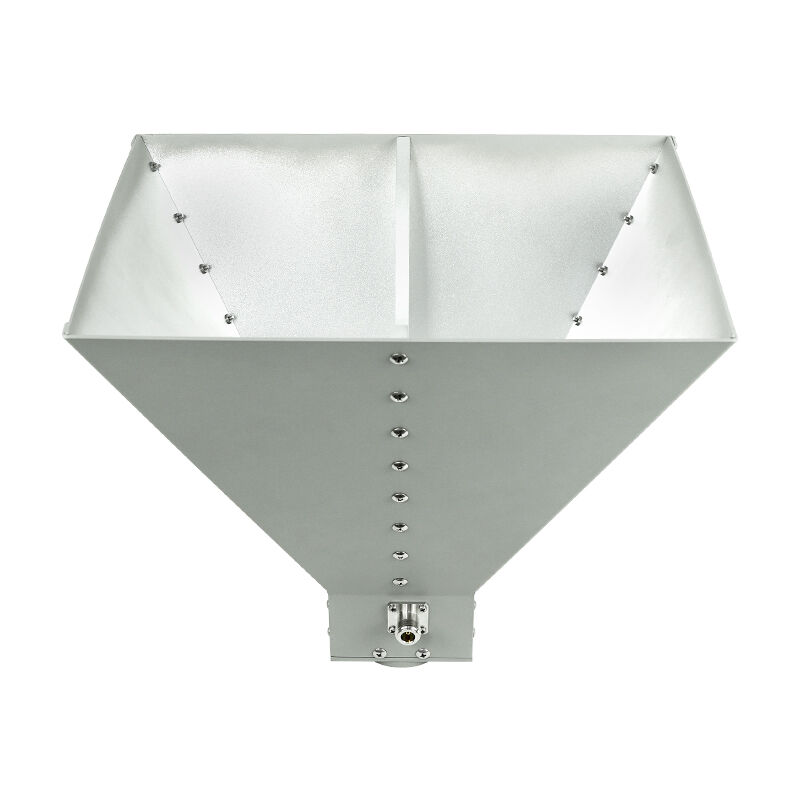

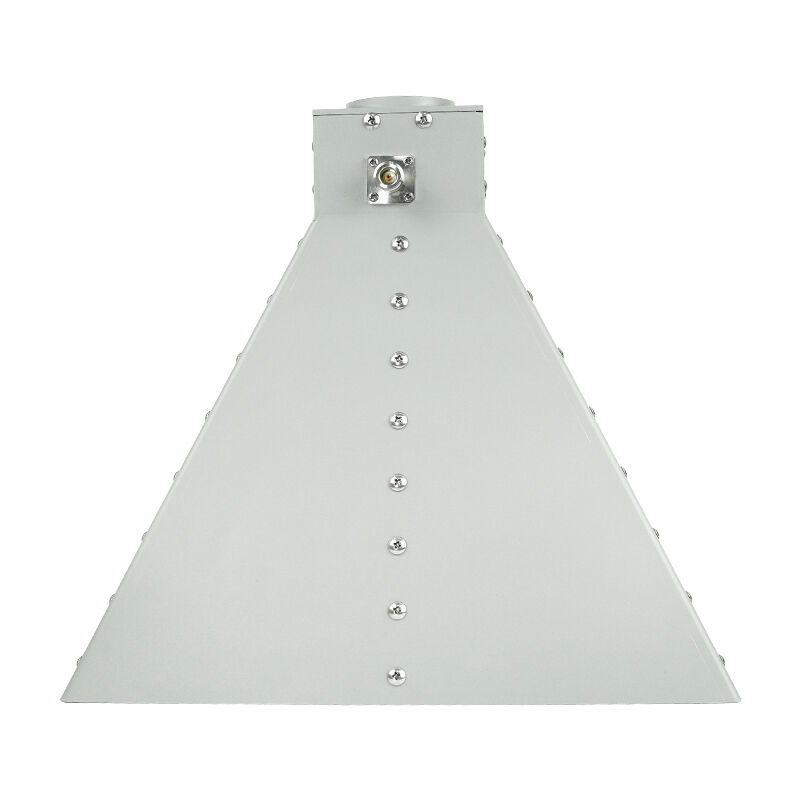

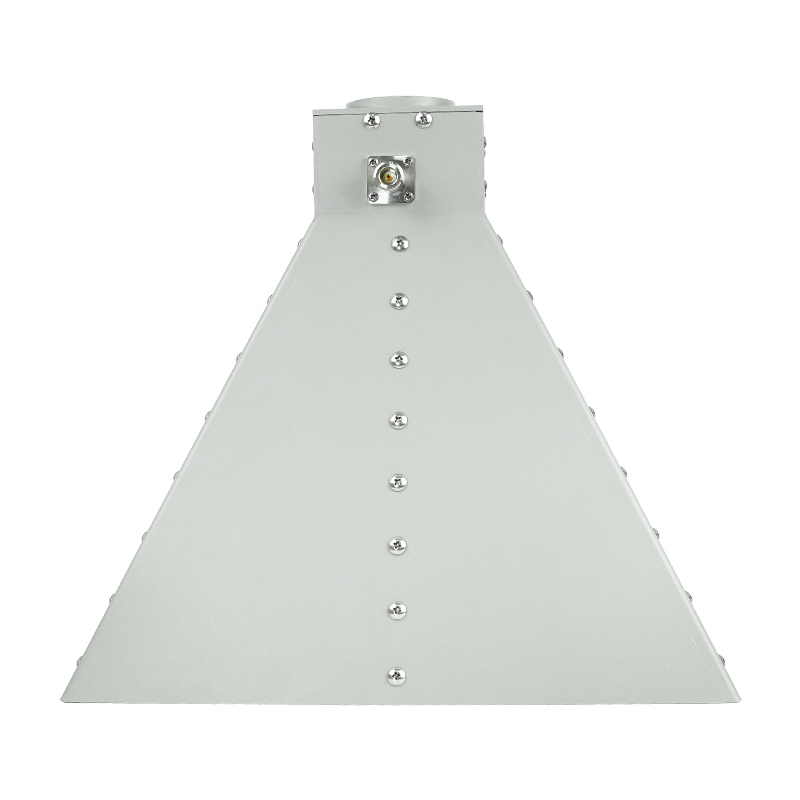

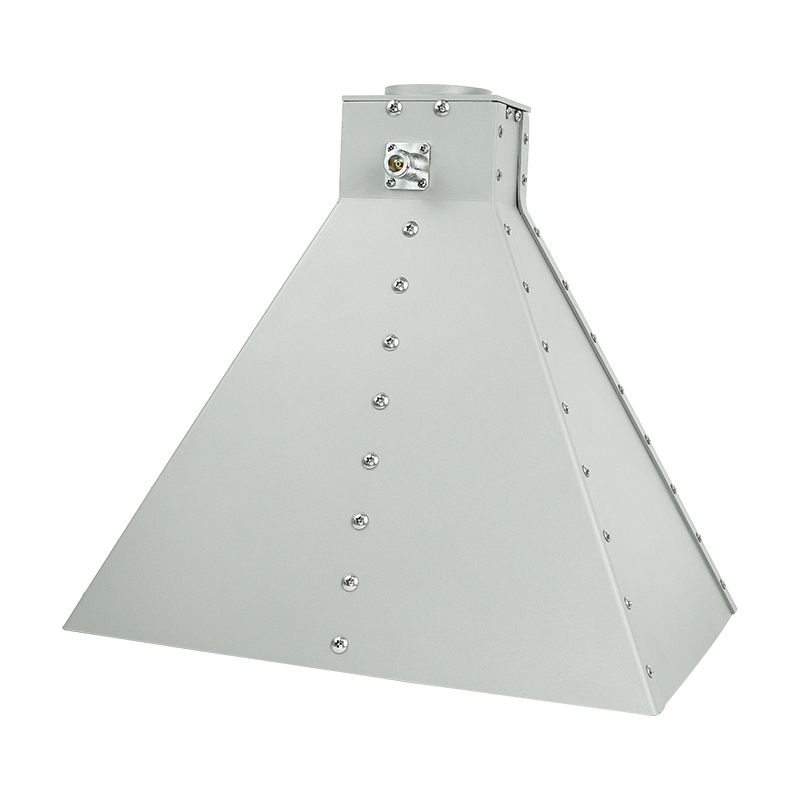

Wide Band 100-1000MHz 100W Directional Waterproof Outdoor Antenna

This 100W 100-1000MHz double-ridged horn antenna provides stable output in complex and harsh environments without interference. Commonly used in satellite communications, signal base station construction, and drone countermeasure equipment.

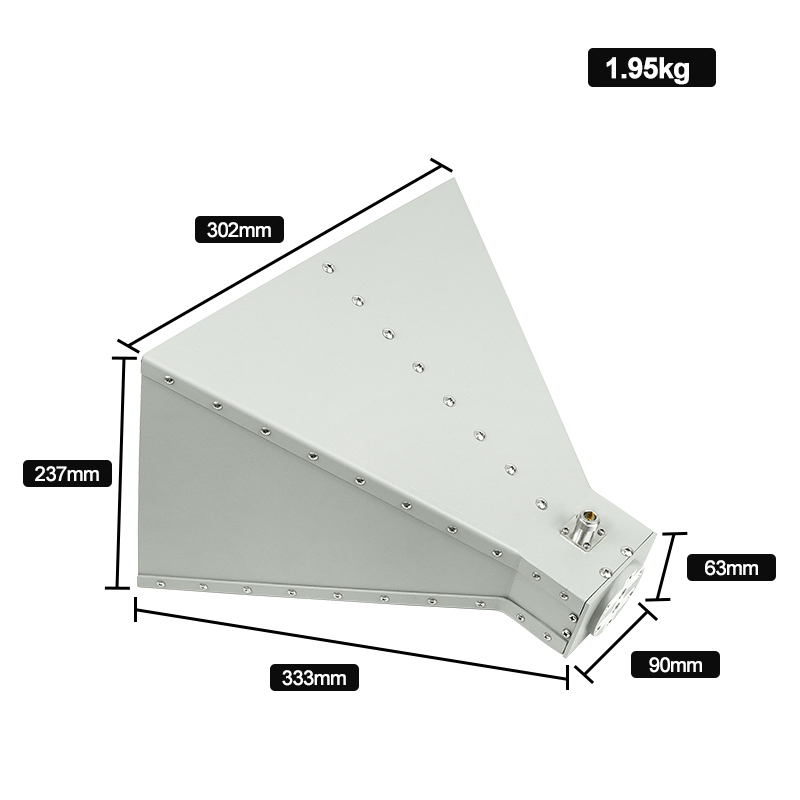

Dimensions: 302×237×333mm
Weight: 1.95kg

Technical Specifications

Item	Data	Unit
Frequency	100-1000	MHz
Output	100W	-
Gain	5-10	dBm
Polarization	Vertical	-
Input Impedance	50Ω	dB
Input Connector Type	N	-
Lightning Protection	DC Ground	dB
Cable Type	RG316	-
Output Connector VSWR	≤1.50 (No power and VNA test)	-
Outer Shell Size	302×237×333	mm
Material	Copper	-
Weight	1.95	kg
Work Temperature	-40~+65	℃
Installation	Machine installation	-
Vibration Requirement	Car load OK	-

Product Images

Product Features

Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, compatible with multiple brands and types of drones without additional debugging.
High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
Strong adaptability and high durability: Utilizing industrial-grade components and anti-interference shielding design, withstands temperatures from -20°C to 60°C and humidity levels of 5% to 95%.
Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.

Product Application

Frequently Asked Questions

Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.

MOQ?

1 to 100pcs

Payment term?

T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.

How to proceed with an order?

A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment

What to do if I receive defective products?

Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.

Factory Pictures

etiqueta:

Lugar de origem:	China
Marca:	TeXin
Certificação:	SGS,ISO9001

Quantidade de ordem mínima:	1
Preço:	Negociável
Detalhes da embalagem:	Caso ou caixa durável
Tempo de entrega:	3-5 dias
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte:	50,00PCS/Month
