Informação detalhada

Freqüência:	5100-5300 MHz (personalizado)	Ganho:	3±0,5 dB Bi
ROE:	≤1,5	Polarização:	Vertical
Impedância de entrada:	50Ω	Potência de entrada:	50W
Temperatura operacional:	40~80º	Tamanho da concha exterior:	20*100mm
Peso:	60g	Conector:	N Conector
Material de casca fora:	Cobre
Destacar:	small wifi 5g high gain antenna , outdoor drone jamming antenna , 5.2ghz four leaf clover antenna

Descrição de produto

Small Size WiFi 5G 5.2GHz Signal 3.5dBm Outdoors Jamming Drone Four Leaf Clover Antenna

The 5GHz (5100-5300MHz) clover-shaped WiFi antenna features ample bandwidth and low interference, enabling it to jam the signals of various image transmission drones, including FPV and UAV drones, even in complex environments. The clover-shaped antenna consists of four mutually perpendicular radiating elements. This structure allows the antenna to generate rotating circularly polarized waves, providing omnidirectional radiation and achieving 360° coverage without dead zones in the horizontal direction.

Dimensions: 100*99mm
Weight: 60g

Technical Specifications

No.	Item	Data	Unit
1	Frequency	5100-5300	MHz
2	Range	360°
3	Current	6.5	A
4	Output	50	W
5	Gain	3±0.5	dB
6	Input Connector Type	N	-
7	Input Stability	0-10	dB
8	Cable Type	RG316	-
9	Output Connector VSWR	≤1.50 (No power and VNA test)	-
10	Outer Shell Size	100*99	mm
11	Material	Copper	-
12	Weight	54	g
13	Work Temperature	-40~+65	℃
14	Connector	N-male	-
15	Vibration Requirement	Car load OK	-

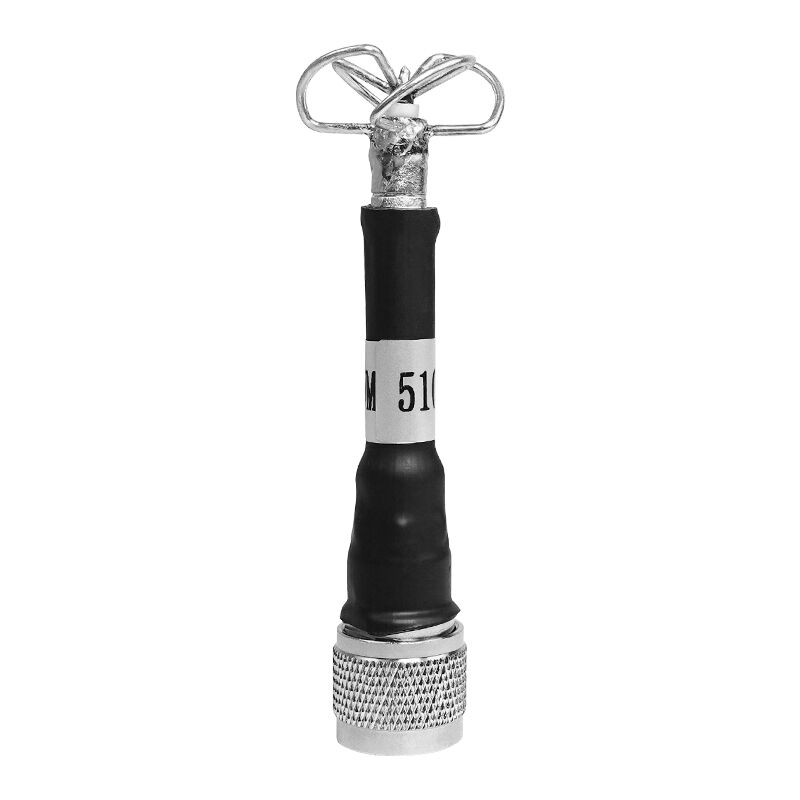

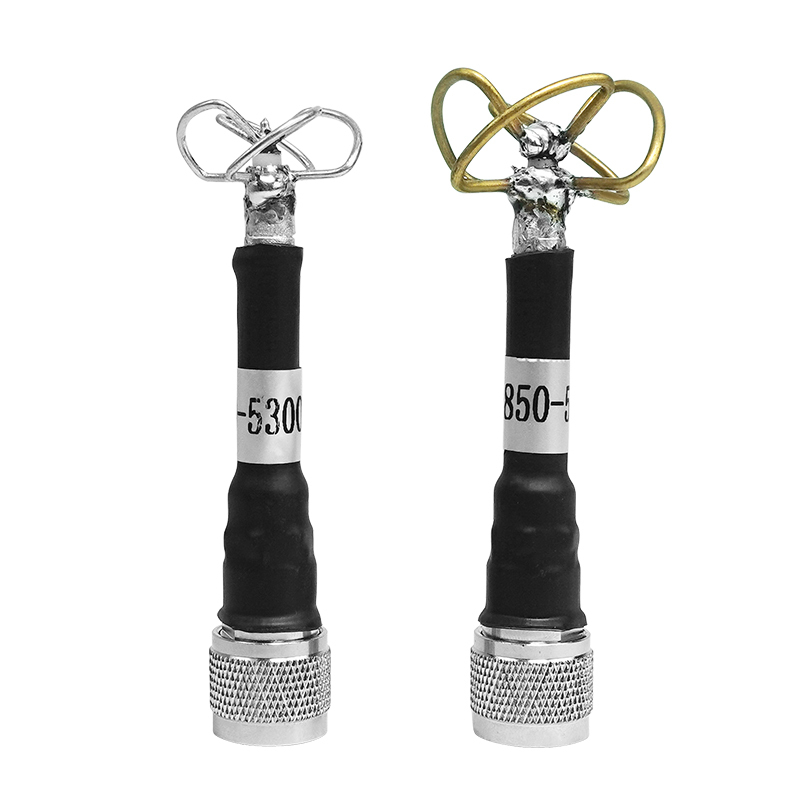

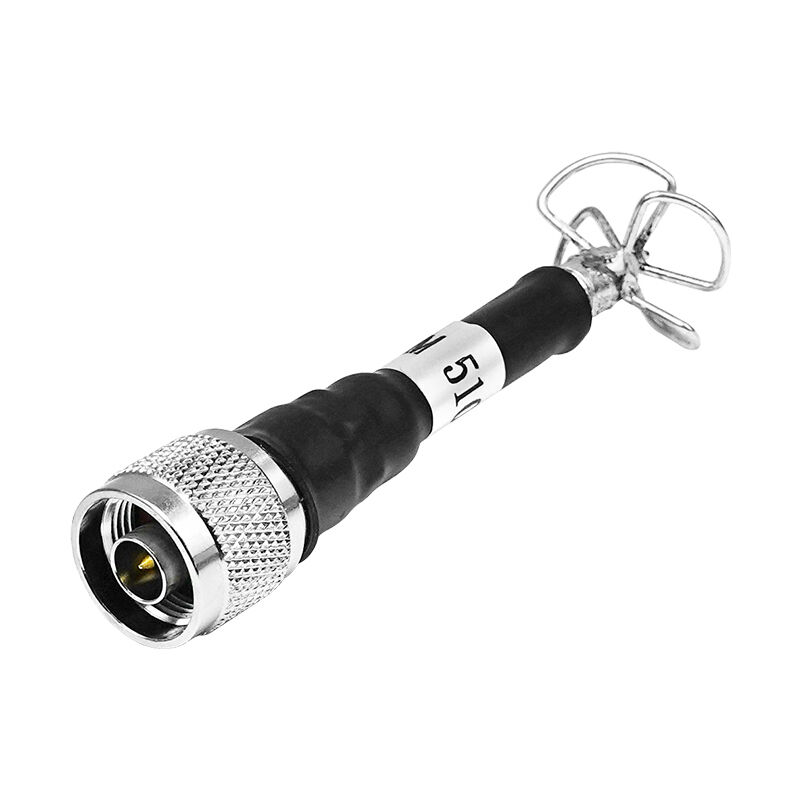

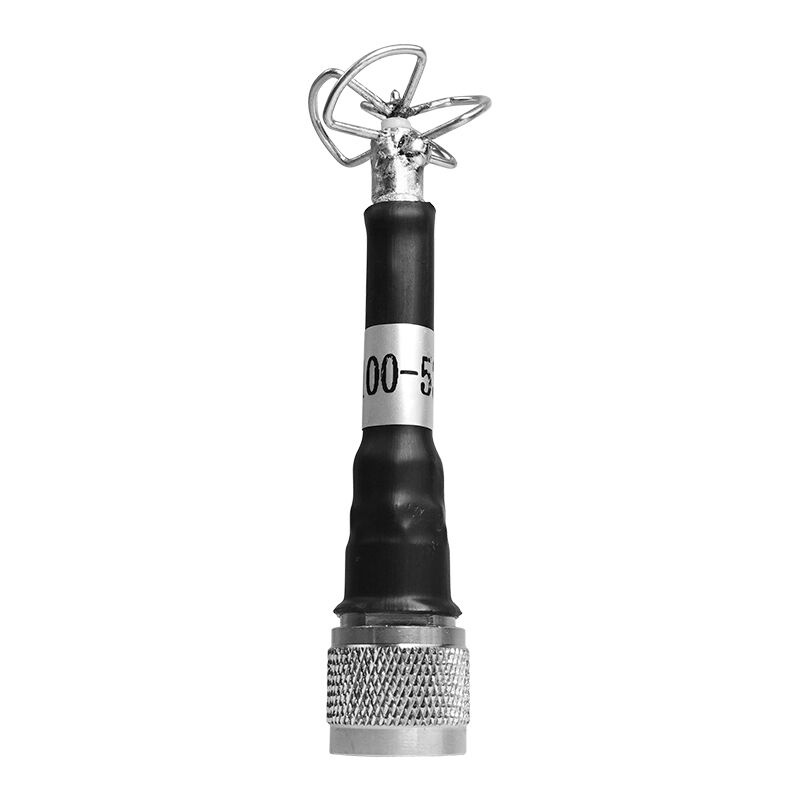

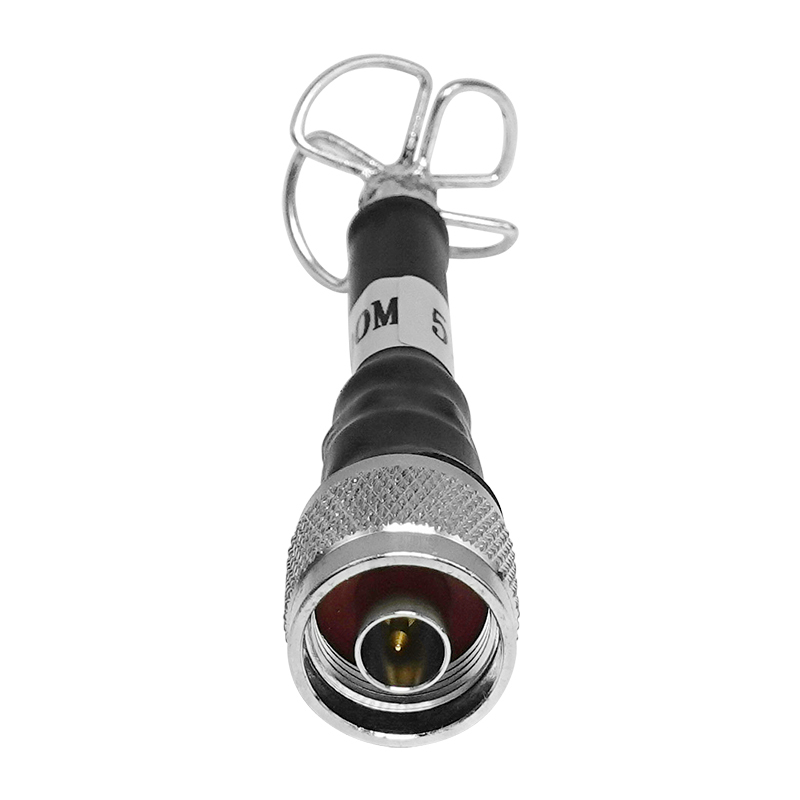

Product Images

Product Features

Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, it's compatible with multiple brands and types of drones without additional debugging.
High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
Strong adaptability and high durability: Utilizing industrial-grade components and an anti-interference shielding design, it can withstand temperatures ranging from -20°C to 60°C and humidity levels of 5% to 95%.
Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.

Product Application

Frequently Asked Questions

Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here.

MOQ?

1 to 100pcs

Payment term?

T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.

How to proceed with an order?

A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment

What to do if I receive defective products?

Our strict quality control will ensure a 100% pass rate. But it can be damaged in transit. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.

Factory Pictures

etiqueta:

Lugar de origem:	China
Marca:	TeXin
Certificação:	SGS,ISO9001

Quantidade de ordem mínima:	1
Preço:	Negociável
Detalhes da embalagem:	Caso ou caixa durável
Tempo de entrega:	3-5 dias
Termos de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte:	50,00PCS/Month
